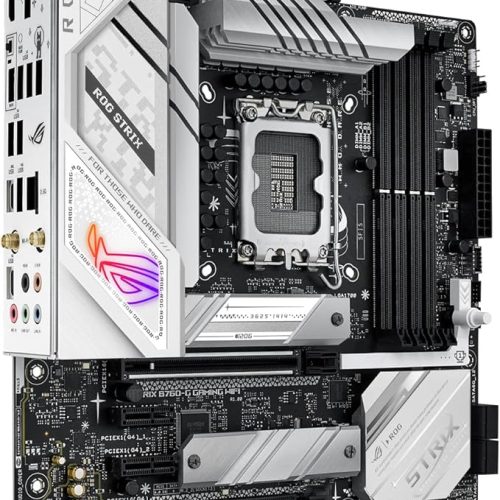

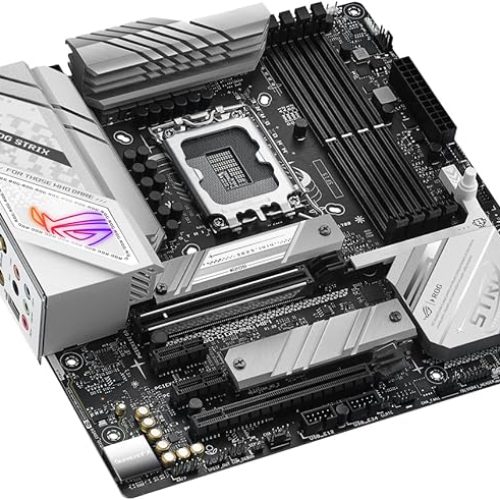

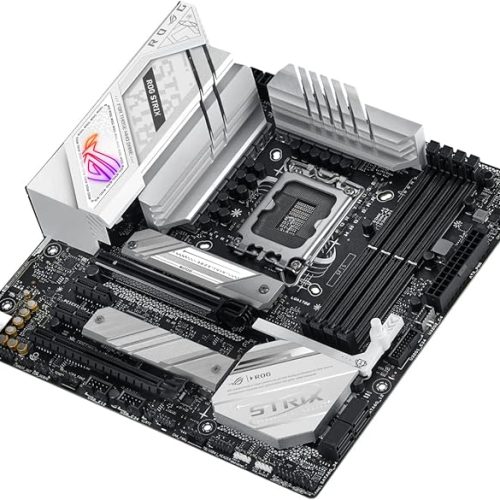

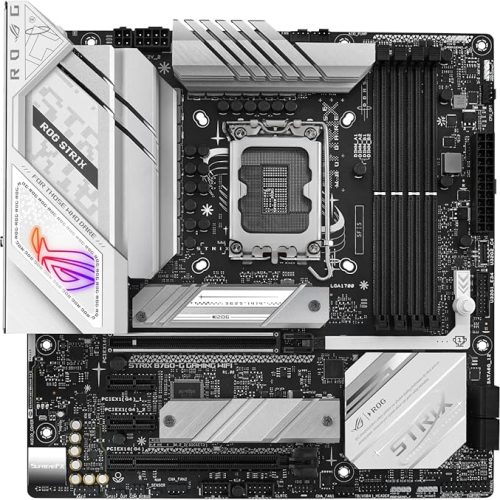

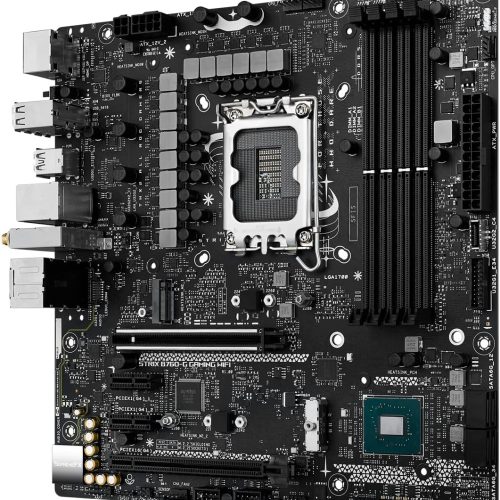

ASUS ROG STRIX B760G GAMING WIFI Intel B760 LGA 1700 micro ATX

Technical Specifications:

Processor Support:

Supports 12th, 13th, and 14th Gen Intel® Core™ processors

Socket: LGA 1700

Chipset:

Intel® B760

Form Factor:

micro ATX (mATX)

Dimensions: 24.4 cm × 24.4 cm

Memory (RAM) Support:

4 × DDR5 DIMM slots

Supports frequencies up to DDR5-7800+ (OC)

Maximum capacity: 128 GB

Storage Support:

2 × M.2 NVMe PCIe 4.0 x4

4 × SATA 6Gb/s

Graphics Card Support (PCIe):

1 × PCIe 5.0 x16 (metal-reinforced)

1 × PCIe 3.0 x1

Networking and Connectivity:

Wi-Fi 6 (802.11ax) + Bluetooth 5.2

Intel 2.5G Ethernet (LAN)

Audio:

ROG SupremeFX 7.1 ALC4080 audio codec

High-quality Nichicon capacitors

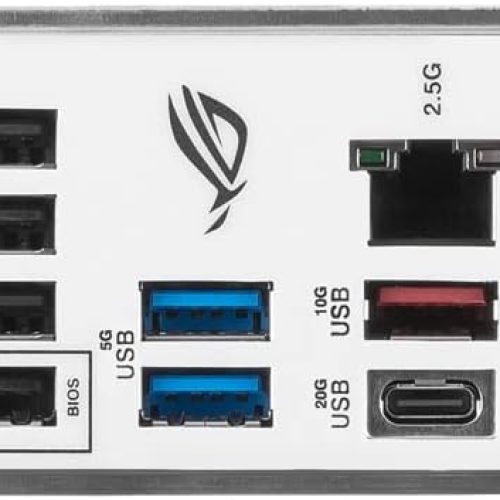

Back I/O Ports:

1 × HDMI 2.1

1 × DisplayPort 1.4

4 × USB 3.2 Gen 1 Type-A

1 × USB 3.2 Gen 2 Type-C

2 × USB 2.0

1 × LAN (RJ-45)

3 × 3.5mm audio jacks

BIOS Flashback button

Wi-Fi antenna connectors

Additional Features:

Aura Sync RGB support

High-quality power stage components

Enhanced cooling with M.2 and VRM heatsinks

BIOS FlashBack™ and Q-LED diagnostics features
