ASUS TUF GAMING Z890-PLUS WIFI DDR5

 Specifications

  CPU & Chipset

Socket: LGA 1851

Chipset: Intel® Z890

Processor Support: Designed for Intel® Core™ Ultra (2nd Gen) processors

---

  Memory

Type: DDR5, Dual Channel

Slots: 4 × DIMM

Max Capacity: 192 GB

Max Speed: Over 9066 MHz (OC)

Features: AEMP III, DIMM Fit / DIMM Fit Pro

---

  Storage

M.2 Slots:

1 × M.2 2242/2260/2280 PCIe 5.0 x4

1 × M.2 2280 PCIe 4.0 x4

1 × M.2 2280/22110 PCIe 4.0 x4

1 × M.2 2242/2260/2280 PCIe 4.0 x4 & SATA

SATA Ports: 4 × SATA 6Gb/s

---

  Networking

Wired: Intel® 2.5Gb Ethernet

Wireless: Wi-Fi 7 (802.11be), 2.4/5/6GHz bands

Bluetooth: Bluetooth® v5.4

---

? Expansion

PCIe Slots:

1 × PCIe 5.0 x16 (SafeSlot)

1 × PCIe 4.0 x16 (runs at x4)

1 × PCIe 4.0 x4

2 × PCIe 4.0 x1

---

  USB Ports

Rear I/O (8 Ports):

1 × Thunderbolt™ 4 (USB Type-C®)

1 × USB 20Gbps (USB Type-C®)

3 × USB 10Gbps (Type-A)

3 × USB 5Gbps (Type-A)

Front I/O (7 Ports):

1 × USB 20Gbps (Type-C®)

1 × USB 5Gbps (supports 2 ports)

2 × USB 2.0 (supports 4 ports)

---

  Audio

Codec: Realtek ALC1220P

Features: DTS audio processing, audio shielding, premium capacitors, dedicated PCB layers, TUF Gaming audio cover, noise reduction circuit

Outputs: 5 × audio jacks, 1 × optical S/PDIF out

---

? Video Output

Ports: 1 × DisplayPort, 1 × HDMI™

Support:

Thunderbolt™ 4: Up to 8K @60Hz with DSC

HDMI 2.1: Up to 4K @60Hz

---

  Cooling & Power

Power Design: 16+1+2+1 Power Stages (80A) with enlarged VRM heatsinks

Fan Headers:

1 × CPU Fan (4-pin)

1 × CPU OPT Fan (4-pin)

1 × AIO Pump (4-pin)

4 × Chassis Fan (4-pin)

Power Connectors: 1 × 24-pin Main, 2 × 8-pin +12V CPU

---

  Additional Features

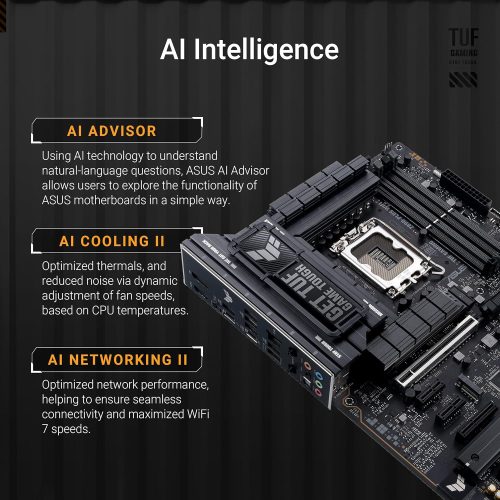

AI Features: AI Advisor, AI Cooling II, AI Networking II

DIY Tools: PCIe Slot Q-Release, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, BIOS FlashBack™ button

Lighting: Full support for Aura Sync RGB lighting
