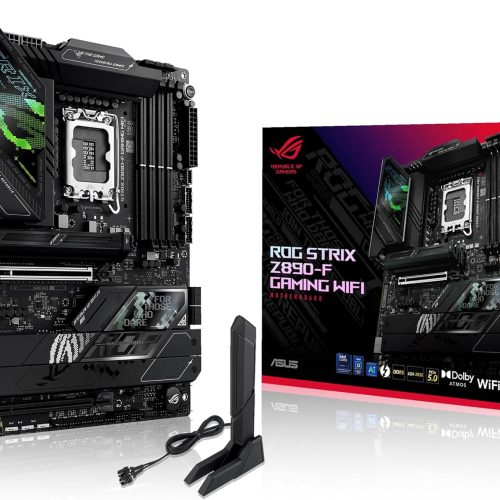

ASUS ROG STRIX Z890-F GAMING WIFI Mainboard Sockel Intel LGA 1851

   Specifications

  CPU & Chipset

Socket: LGA 1851

Chipset: Intel® Z890

Processor Support: Designed for Intel® Core™ Ultra (2nd Gen) processors

  Memory

Type: DDR5, Dual Channel

Slots: 4 × DIMM

Max Capacity: 256 GB

Max Speed: Over 8600 MHz (OC)

Features: Intel® XMP, AEMP III, DIMM Flex, DIMM Fit

  Storage

M.2 Slots:

1 × M.2 22110 (PCIe 5.0 x4)

1 × M.2 2280 (PCIe 4.0 x4)

2 × M.2 2280/22110 (PCIe 4.0 x4)

1 × M.2 2242/2260/2280 (PCIe 4.0 x4 & SATA)

SATA Ports: 4 × SATA 6Gb/s

RAID Support: RAID 0, 1, 5, 10 for SATA and NVMe M.2

   Networking

Wired LAN: Intel® 2.5Gb Ethernet with ASUS LANGuard

Wireless: Wi-Fi 7 (802.11be) 2x2, supports 2.4/5/6GHz bands

Bluetooth: Bluetooth® v5.4

? Expansion Slots

PCIe:

1 × PCIe 5.0 x16 (SafeSlot)

1 × PCIe 4.0 x16 (runs at x4 mode)

? USB Ports

Rear I/O (14 ports):

2 × Thunderbolt™ 4 (USB Type-C®)

6 × USB 10Gbps (4 × Type-A, 1 × Type-C, 1 × Type-C with fast charging up to 30W)

4 × USB 5Gbps (Type-A)

2 × USB 2.0 (Type-A)

Front I/O (9 ports):

1 × USB 20Gbps (Type-C )

2 × USB 5Gbps (supports 4 additional ports)

2 × USB 2.0 (supports 4 additional ports)

  Audio

Audio Codec: ROG SupremeFX ALC4080

Features:

7.1 Channel High-Definition Audio

Savitech SV3H712 Amplifier

Dolby Atmos  Support

Gold-plated audio jacks

Optical S/PDIF out

  Video Output

Ports:

1 × DisplayPort (up to 8K@60Hz with DSC)

1 × HDMI™ 2.1 (up to 4K@60Hz)

2 × Thunderbolt™ 4 (support DisplayPort and Thunderbolt video output)

❄️ Cooling & Power

Power Design: 16+1+2+2 Power Stages (up to 110A per stage)

Fan Headers:

1 × CPU Fan (4-pin)

1 × AIO Pump (4-pin)

5 × Chassis Fan Headers (4-pin)

Power Connectors:

1 × 24-pin main

2 × 8-pin +12V CPU

  Additional Features

AI Capabilities: AI Overclocking, AI Cooling II, AI Networking II, AI Advisor

DIY Features: PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBack™ Button, Clear CMOS Button

Lighting: Polymo Lighting, Aura Sync Support (3 × Gen2 RGB headers)

Software: Armoury Crate, ASUS AI Suite, HWiNFO, AIDA64 Extreme

For full details, visit the official product page on rog.asus.com
