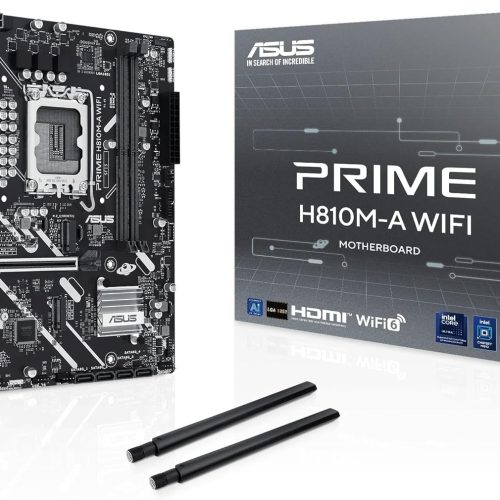

Asus Prime H810M-A WiFi Intel 1851 Micro ATX DDR5 Motherboard

ASUS Prime H810M A WiFi

ASUS Prime series motherboard designed for stable performance and professional expansion, fully supporting Intel® Core Ultra processors.

Technical Specifications

Socket:

LGA 1851 – Supports Intel® Core Ultra (Series 2) processors

Chipset:

Intel® H810

Power Design (VRM):

6 + 1 + 1 + 1 digital phase design for stable CPU power delivery

Memory (RAM)

Slots: 2 × DIMM

Maximum Capacity: 128 GB

Memory Type: DDR5

Supported Speed: Up to 6400 MT/s

Performance Profiles: XMP and ASUS AEMP II

Graphics & Display Outputs

HDMI port supporting 4K resolution

DisplayPort supporting 4K resolution

Expansion Slots

PCIe Slots:

1 × PCIe 4.0 ×16

1 × PCIe 4.0 ×1

Storage Slots:

2 × M.2 (PCIe 4.0 ×4 and PCIe 4.0 ×2)

4 × SATA III (6 Gb/s)

________________________________________

Networking & Connectivity

Built-in Wi Fi 6

Bluetooth v5.3

1 Gb Ethernet with LANGuard protection

________________________________________

USB Ports

• Rear I/O:

2 × USB Type-A (10 Gbps)

4 × USB 2.0

• Front Headers:

1 × USB Type-C (5 Gbps)

1 × USB 5 Gbps header (supports 2 additional ports)

1 × USB 2.0 header (supports 2 additional ports)

________________________________________

Audio

High-quality Realtek audio

7.1 surround sound support

Advanced features including audio shielding and premium capacitors

________________________________________

Cooling

Integrated heatsinks for effective cooling

Multiple hybrid fan headers for precise fan control

Supports Fan Xpert 2+ for advanced cooling management

________________________________________

Customization & Lighting

Aura Sync RGB lighting fully customizable

Addressable Gen2 RGB headers

EZ PC DIY features like Q LED Core and SafeSlot Core+ for easy build assembly

________________________________________

Power & Operation

24-pin main power connector and 8-pin CPU power

Advanced BIOS/UEFI interface for performance tuning

Power management for energy efficiency

________________________________________

Form Factor

Micro-ATX

Dimensions: 244 × 222 mm

________________________________________

Color:

Black
